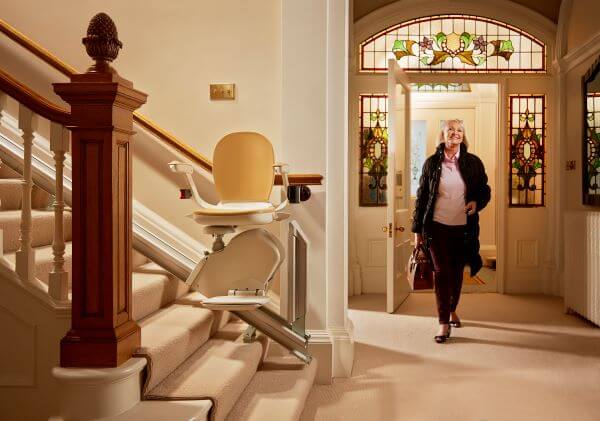

Acorn 130 Straight Indoor & Outdoor Stairlift
The Acorn 130 is the most affordable Acorn stairlift option, specially manufactured for straight staircases. It is the perfect choice for a two story home, or a home with a basement.
The smooth stop and start feature along with the minimal design and foldable features allows for a comfortable experience when you need it, and a clear staircase when you want it.
The outdoor version of the Acorn 130 stairlift is identical to the indoor, save for meticulous weatherproofing to ensure long-term reliability in all conditions .

Acorn 130 Specifications
Motor output speed | 4.8 inches per second – No greater than 5.9 inches per second |
Method of drive | Rack & pinion |
Power supply | 24V DC (battery) |
Maximum capacity | 300lbs (optional 350lbs) |
Track | Modular rail, extruded aluminum |
Main supply | 50-60Hz, 100-240V AC |

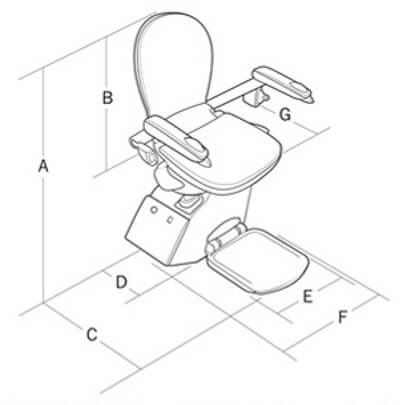

Acorn 130 Dimensions
Image Reference | Measurement | Inches |
A | Overall height | 38.5 |
B | Height of seat | 17.25 |
C | Overall depth (from wall) | 22.5 |
D | Overall depth (when folded) | 12.25 |
E | Width of footrest | 12.25 |
F | Overall width | 23.75 |
G | Depth of seat | 16 |

Independently tested to comply with:
- BS EN 81-40:2008 – European safety standard – ‘Specification for powered stairlifts’.
- CE mark – Acorn Stairlift meets the requirements of the applicable European Directive(s).
- ASME compliant for mechanical and electrical hazards – ASME A18.1 and A17.5.
- ISO 9386:2-2000 International standards for stairlifts.

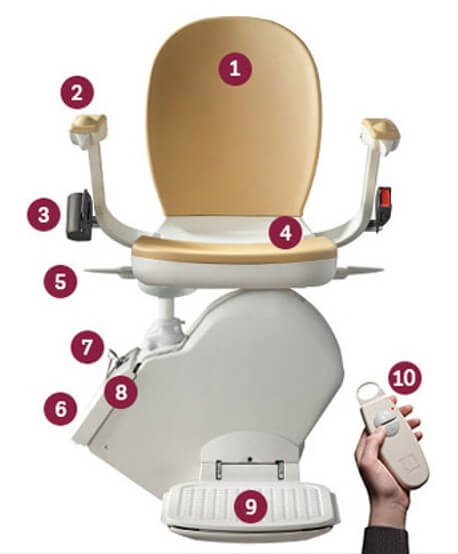

A Wealth of Features for Your Benefit
Features of the Acorn 130 and Acorn 180 stairlifts.
- Padded seat and backrest for maximum comfort.
- Can be operated with the lightest of touches. Perfect for those with limited dexterity.
- A safety belt is installed on all of our stairlifts, so you feel secure at all times.
- Our slim fold away design has folding arms, seat and footrest, so other people can continue to use the stairs.
- A lockable swivel seat means you can get on and off your stairlift without twisting your body.
- Railing is secured directly to your stairs, not to the wall. So there’s no structural damage to your home.
- A lockable on/off switch provides additional child-friendly safety.
- A diagnostic digital display allows you to see the exact status of the stairlift at all times.
- Five safety sensors on the footrest and carriage stop the lift automatically should there be any obstruction on your staircase.
- Two remote controls are provided so that you can have the convenience of being able to share the stairlift with a loved one.

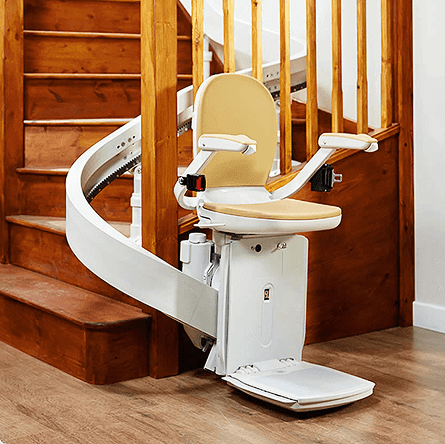

Acorn 180 Curved Stairlift
The Acorn 180 is an affordable and highly customizable stairlift that can be adapted to nearly all situations.
It can be installed on virtually any staircase, including curves, multiple landings, and narrow widths. Each Acorn 180 is designed and installed to your precise requirements.
Want your stairlift to take you down the hall to your bedroom? The Acorn 180 can do that. Want it to take you into your living room from upstairs? It can do that too.

Acorn 180 Specifications
Motor output speed | 4.8 inches per second – No greater than 5.9 inches per second |
Method of drive | Rack & pinion |
Power supply | 24V DC (battery) |
Maximum capacity | 266lbs |
Track | Modular rail, extruded aluminum |
Main supply | 50-60Hz, 100-240V AC |

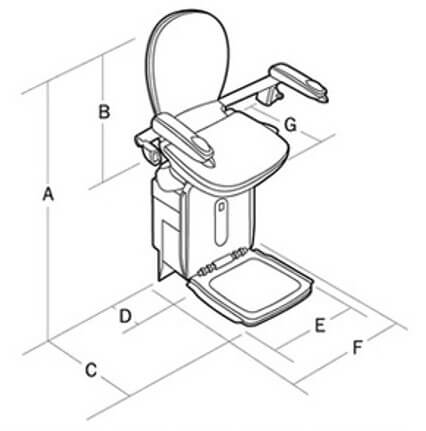

Acorn 180 Dimensions
Image Reference | Measurement | Inches |
A | Overall height | 38.25 |
B | Height of seat | 17.25 |
C | Overall depth (from wall) | 25.25 |
D | Overall depth (when folded) | 13.25 |
E | Width of footrest | 14.75 |
F | Overall width | 24.5 |
G | Depth of seat | 16 |

Independently tested to comply with:
- BS EN 81-40:2008 – European safety standard – ‘Specification for powered stairlifts’.
- CE mark – Acorn Stairlift meets the requirements of the applicable European Directive(s).
- ASME compliant for mechanical and electrical hazards – ASME A18.1 and A17.5.
- ISO 9386:2-2000 International standards for stairlifts.
